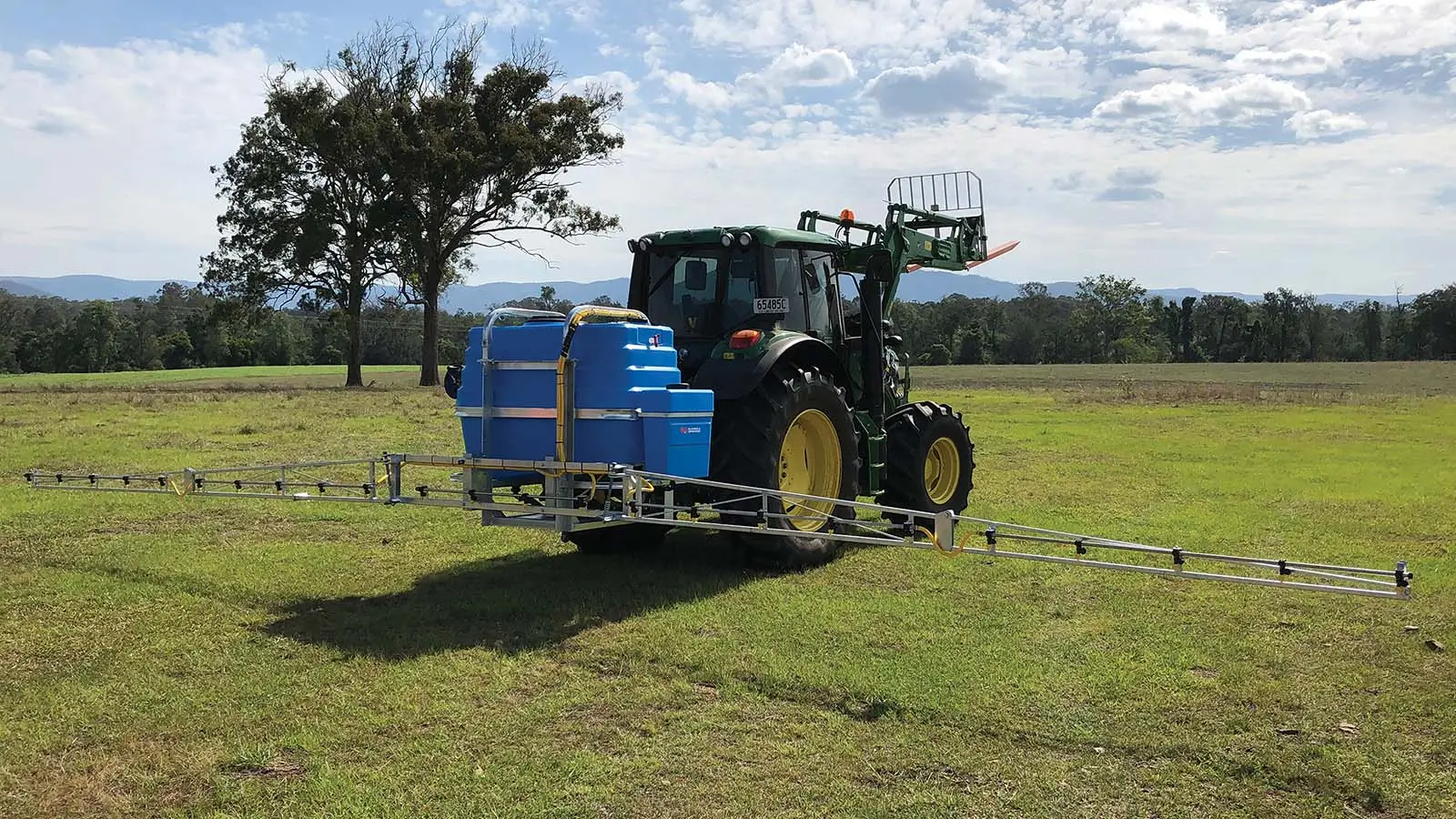

5 Tips For Properly Calibrating Tractor Mounted Boom Sprayer

• March 07, 2024

Calibration is important to calculate the efficiency of the boom sprayer by evaluating how much water/chemical mix the sprayer puts out. It is an important process to ensure the precise application of pesticides and fertilizers on your crops. Effective calibration not only helps in proper spraying but also minimizes waste and reduces the risk of environmental contamination.

But what is the best way to calibrate a tractor-mounted boom sprayer? Here we have some tips for you to find the right way.

Essential Steps and Tips For Conducting A Successful Calibration

1. Understand Your Equipment

Effective calibration of any equipment requires a deep understanding of the mechanism and functionality of the machine. Thus, before calibrating a boom sprayer you first need to understand how it works. It includes

• Familiarizing with the various parts of the equipment like nozzles, pressure gauges, boom structures, and pump.
• Check the type of nozzle which you are using for your pump. For example, standard flat fans are commonly used in boom sprayers.
• Check the condition of the nozzles and ensure there is no wear or tear.
• Ensure the sprayer is properly working and is in a good condition.

2. Determining The Application Rate:

The very first step for calibrating a tractor mounted boom sprayer is determining the application rate. Application rate means the amount of chemical/water ejected by the sprayer per minute. The rate can also be expressed in terms of gallon per acre.

Application rate typically varies according to the type of crop and nozzle condition. Therefore, determining the accurate application rate becomes very important for proper calibration. You can consult product lables, manufacturers manual, and extension resources to measure the application rate.

Things you should remember before calculating application rate:

• Make sure the nozzles are in good condition.
• Never use any kind of fertilizers or pesticides during the process to reduce waste.
• Check accurate pressure as instructed in the guide.

3. Conduct Nozzle Check

In tractor mounted boom sprayers, nozzles play a vital role in delivering the spray solution accurately across the area. Therefore, before calibration, you need to check that all the nozzles are acting properly and maintained well for seamless functioning. It is also important to evaluate the spray pattern of the nozzles.

Evaluating spray patterns can help you understand the conditions of nozzles. Here are some tips to conduct a proper nozzle check

• Inspect for clogs, wear, and tear or any kind of damage in the nozzles.
• Verify the nozzles are properly spaced and don't interrupt each other's action.
• Replace the defective nozzles and clean those that are required.

4. Perform A Calibration Test

Now, when you have tested the nozzles and measured the application rate, you are ready to perform the calibration test. The test aims to set a fine tune for your tractor mounted boom sprayer settings. Here are the basic steps to perform the calibration test

• Fill the spray tank with clean water.
• Adjust the nozzle pressure as per the manufaturers guidelines.
• Run the sprayer with a consistent speed and record the spray rate per minute.
• Finally, measure the volume of water collected from each nozzle during this time period.
• Compare the standard rate and calculate the actual flow rate.

5. Make Necessary Adjustments

After completing all the steps, minor adjustments might be required for enhanced results. You may need to adjust the tractor mounted boom sprayer settings to achieve the desired application rate.

Exemplary scenarios:

• If the flow rate is more than the target flow rate or overlapping with the flow, then you can lower the pressure gradient for a decreased rate.
• Conversely, if the flow rate is below the targeted rate, then you can simply increase the pressure gradient gradually for achieve the desired rate.

Tips For Ensuring Safety During Calibration

• If you don't have a prior understanding of the calibration process then make sure someone with experience is assisting you.
• Carry essential safety precautions like goggles, gloves, and face shields for protection.
• Handle all the pesticides and fertilizers with care.
• Follow the recommended safety procedures outlined on product labels and safety data sheets.
• Choose a well-ventilated area for calibration activities to minimize exposure to fumes and vapour.
• Follow the manufacturer's guidelines before using the boom sprayers.

Wrap Up

In summary, effective calibration carries several essential steps that need to be carried out properly. Strictly follow the guidelines and ensure to adhere to all safety precautions for conducting a smooth and effective calibration of tractor mounted boom sprayer. If you are suffering at any step then surely reach out to an experienced person or manufacturer.
