Do's and Don'ts of Tractor Mounted Boom Sprayer Calibration

• October 03, 2024

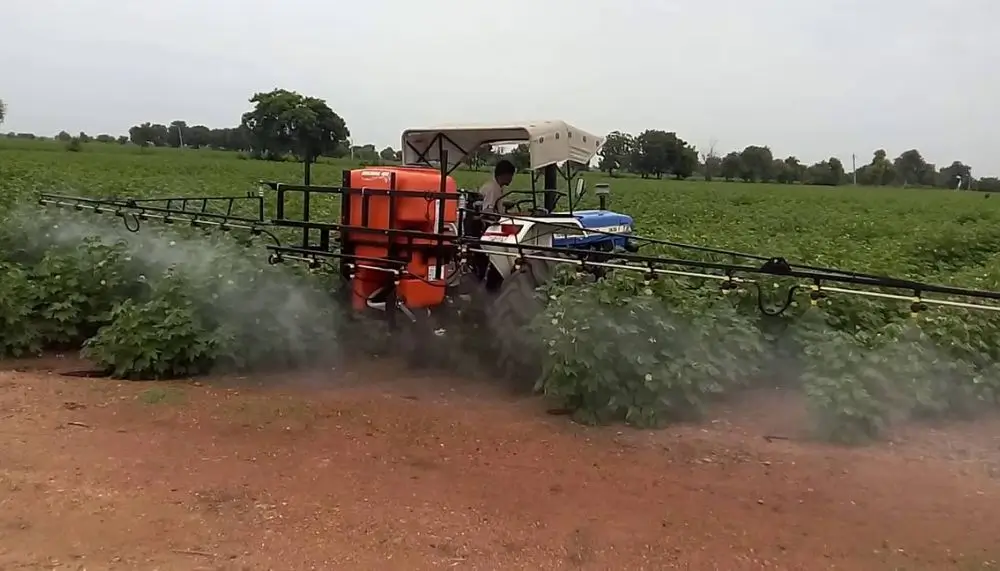

A tractor mounted boom sprayer is an essential tool for farmers and agricultural workers who need to apply pesticides, herbicides, or fertilizers over large fields. Proper calibration of this equipment ensures that the sprayer delivers the correct amount of liquid, reducing waste, optimizing crop yield, and minimizing environmental damage.

Incorrect calibration can lead to under-application or over-application, negatively affecting crops and the environment.

So in this guide, we'll walk you through the steps required to properly calibrate a tractor mounted boom sprayer so you can maximize efficiency and effectiveness in the field.

Why Calibrate a Tractor Mounted Boom Sprayer?

Before diving into the calibration process, it's important to understand why calibration is critical. Here are some points:

1. Accurate Application: Calibrating your sprayer means you'll apply the right amount of chemicals, helping you to achieve the best results.

2. Cost Savings: When you apply the correct amount, you reduce waste and avoid unnecessary chemical costs.

3. Environmental Safety: Over-applying chemicals can damage the soil and water supply, while under-application may not effectively control pests or support crop health.

4. Improved Crop Health: Proper application helps maintain the health and quality of your crops, leading to better yields.

Equipment Needed for Calibration

To start the calibration process, you’ll need the following equipment:

• A tractor mounted boom sprayer
• Measuring containers (like a graduated cylinder or a marked container)
• Stopwatch or timer
• Tape measure or measuring wheel
• Calculator
• Water (for test spraying)

Steps To Calibrate Tractor Mounted Boom Sprayer

Step 1: Inspect the Sprayer

Before calibration, make sure the tractor mounted boom sprayer is in good working condition. Check the following:

Nozzle Condition: Ensure that all nozzles are clean, undamaged, and working properly. Replace any that are clogged or worn out.

Tank: Check the tank for any leaks or cracks.

Pump: Ensure that the pump is functioning well and at the correct pressure.

It’s important to start with well-maintained equipment, as damaged parts can affect the calibration process.

Step 2: Measure the Nozzle Output

Each nozzle on your boom sprayer may output slightly different amounts of liquid. To measure the output, follow these steps:

1. Fill the sprayer tank with clean water (no chemicals).

2. Select a nozzle and collect the liquid from it for one minute, using a measuring container.

3. Record the amount of liquid collected.

4. Repeat the process for other nozzles to ensure they’re all functioning similarly. If any nozzle is outputting significantly more or less liquid, it may need to be replaced or cleaned.

The average nozzle output should be used to calculate the application rate.

Step 3: Determine the Sprayer’s Speed

Next, you’ll need to determine the speed at which the tractor will travel while spraying. To do this:

1. Measure out a known distance in the field (e.g., 100 meters).

2. Drive the tractor over this distance at the speed you will be spraying, using the same gears and RPMs.

3. Time how long it takes the tractor to travel the measured distance.

4. Use the following formula to calculate the tractor speed:

Speed (km/h) = Distance (meters) ÷ Time (seconds) × 3.6

This will give you the speed of the tractor in kilometers per hour (km/h).

Step 4: Calculate the Spray Rate

Now that you know the nozzle output and tractor speed, it’s time to calculate how much liquid the sprayer will apply per hectare.

Use the following formula:

Spray Rate (L/ha) = (600 × Nozzle Output (L/min)) ÷ (Nozzle Spacing (m) × Tractor Speed (km/h))

Where,

Nozzle Output: Average amount of liquid each nozzle releases per minute.

Nozzle Spacing: The distance between each nozzle on the boom sprayer, measured in meters.

Tractor Speed: The speed you measured earlier in kilometers per hour.

Based on your sprayer's setup, This formula helps you determine how much liquid is being applied over a hectare.

Step 5: Adjust the Sprayer Settings

After calculating the spray rate, compare it with the recommended application rate for the chemicals or liquid you’re applying. If the calculated rate is too high or too low, you can make adjustments:

Adjust the pressure: Increasing or decreasing the sprayer pressure can alter the nozzle output.

Change tractor speed: Driving faster or slower can change the amount of liquid applied over a given area.

Change nozzle size: Different nozzle sizes can affect the spray rate as well.

Make these adjustments carefully to ensure your sprayer is calibrated correctly for the application.

Step 6: Field Testing

Once you’ve made the necessary adjustments, test the sprayer in the field:

1. Spray water over a small test area.

2. Measure how much liquid was applied.

3. Check the coverage to ensure even distribution.

This field test will confirm that your tractor mounted boom sprayer is calibrated accurately before applying any chemicals.

Additional Calibration Tips:

Recalibrate Regularly: Over time, nozzles and pumps wear down, so regular recalibration is essential. It’s recommended to recalibrate at the beginning of every spraying season or when changing chemicals.

Account for Wind: Windy conditions can impact spray distribution, leading to uneven application. Always calibrate in similar conditions to those when you plan to spray.

Check Nozzle Height: The height of the boom above the crop affects spray coverage. Ensure the height is consistent across the boom to achieve uniform application.

Common Calibration Mistakes:

Skipping the Nozzle Check: Failing to check individual nozzles can result in uneven spray patterns, leading to over-application in some areas and under-application in others.

Ignoring Speed Variations: Tractor speed has a significant impact on spray rates. Always ensure the tractor maintains a consistent speed while spraying.

Not Considering Overlap: When spraying, ensure that the booms overlap slightly between passes to avoid untreated areas.

Conclusion

Proper calibration of a tractor mounted boom sprayer is vital for efficient and effective application of chemicals and liquids in agriculture. It not only improves crop protection and yields but also reduces costs and environmental risks.

By following the steps outlined in this guide, you can ensure that your sprayer delivers the right amount of liquid and helps you maintain accuracy and efficiency in the long run.
